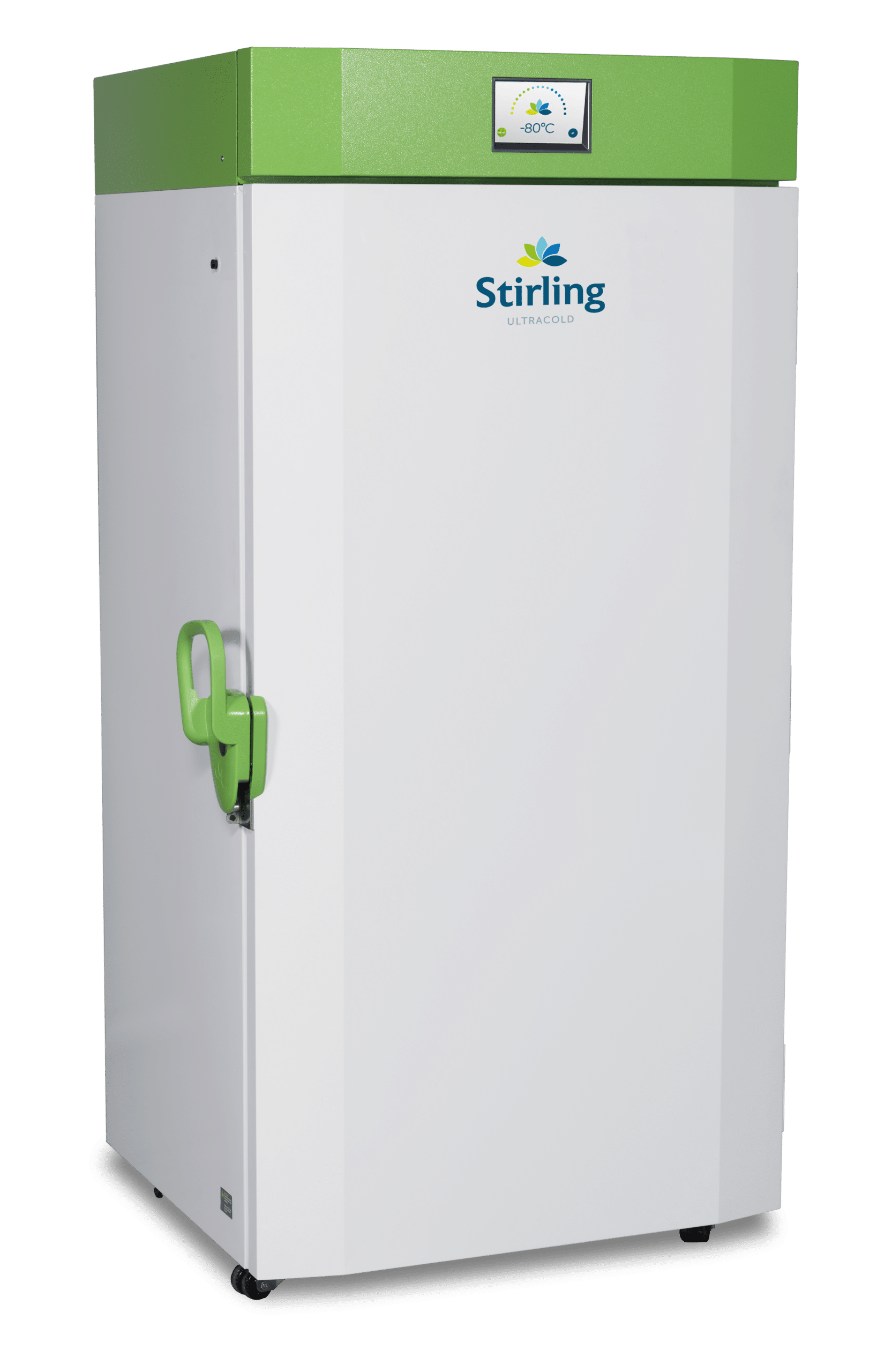

Stirling SU780XLE
Stirling VAULT100
Stirling VAULT100 PRO
Storage Capacity – 780L
Temperature Uniformity @ -80°C – 9.5°C (9 probes, 3″ from wall)
Temperature Uniformity @ -70°C – 7.0°C (9 probes, 3″ from wall)
Recovery from Door Opening to Steady-State* – 35 min @ -80°C
Warm-Up Time from -80°C to -60°C – 2.5 hrs.
Steady-State Energy Consumption* – 6.67kWh/day at -75°C
Steady-State Heat Dissipation – 981 BTU/h @ -80°C
7″ Touchscreen
Onboard Predictive Analytics – No
BACnet I/P – Yes
External Communications – Dry Contacts, 420mA
Engine – M600
Storage Capacity – 795L
Temperature Uniformity @ -80°C – 6.0°C (9 probes, 3″ from wall)
Temperature Uniformity @ -70°C – 5.0°C (9 probes, 3″ from wall)
Recovery from Door Opening to Steady-State* – 26 min @ -80°C
Warm-Up Time from -80°C to -60°C – 3.8 hrs.
Steady-State Energy Consumption* – 5.8kWh/day at -75°C
Steady-State Heat Dissipation – 754 BTU/h @ -80°C
10″ Touchscreen
Onboard Predictive Analytics – Yes
BACnet I/P – Yes
External Communications – Dry Contacts, 420mA
Engine – M6D
Storage Capacity – 795L
Temperature Uniformity @ -80°C – 6.0°C (20 probes, 1″ from wall)
Temperature Uniformity @ -70°C – 4.0°C (20 probes, 1″ from wall)
Recovery from Door Opening to Steady-State* – 26 min @ -80°C
Warm-Up Time from -80°C to -60°C – 3.8 hrs.
Steady-State Energy Consumption* – 6.6kWh/day at -75°C
Steady-State Heat Dissipation – 836 BTU/h @ -80°C
10″ Touchscreen
Onboard Predictive Analytics – Yes
BACnet I/P – Yes
External Communications – Dry Contacts, 420mA
Engine – M6D with Quick Change Technology
* ENERGY STAR Final Test Method: 15s door opening, 1 inner door
